Fluids simulator
Fluids simulator with blobby modeling (metaballs) and spring mechanics. Advanced graphics course final project, NCSU.
Overview

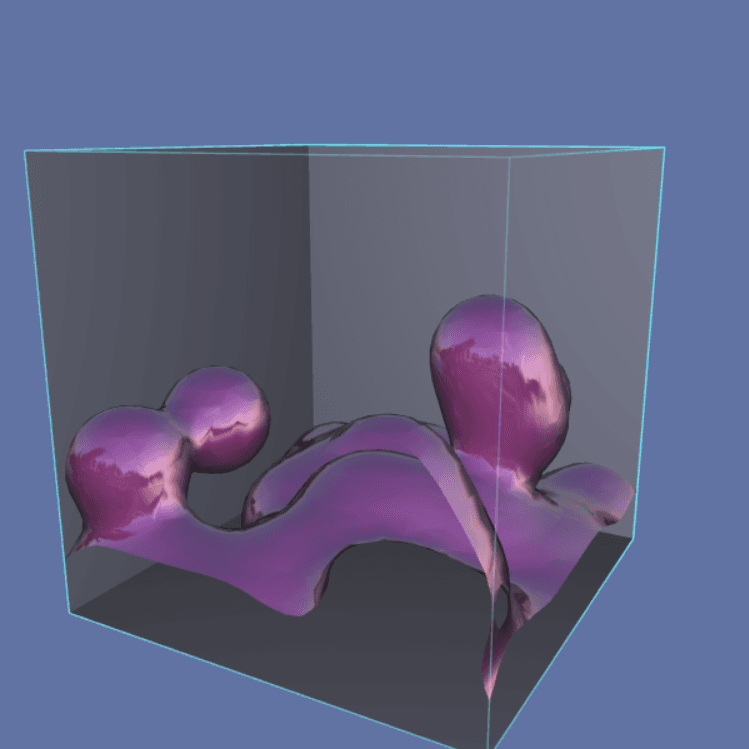

Metaball fluids with marching cubes

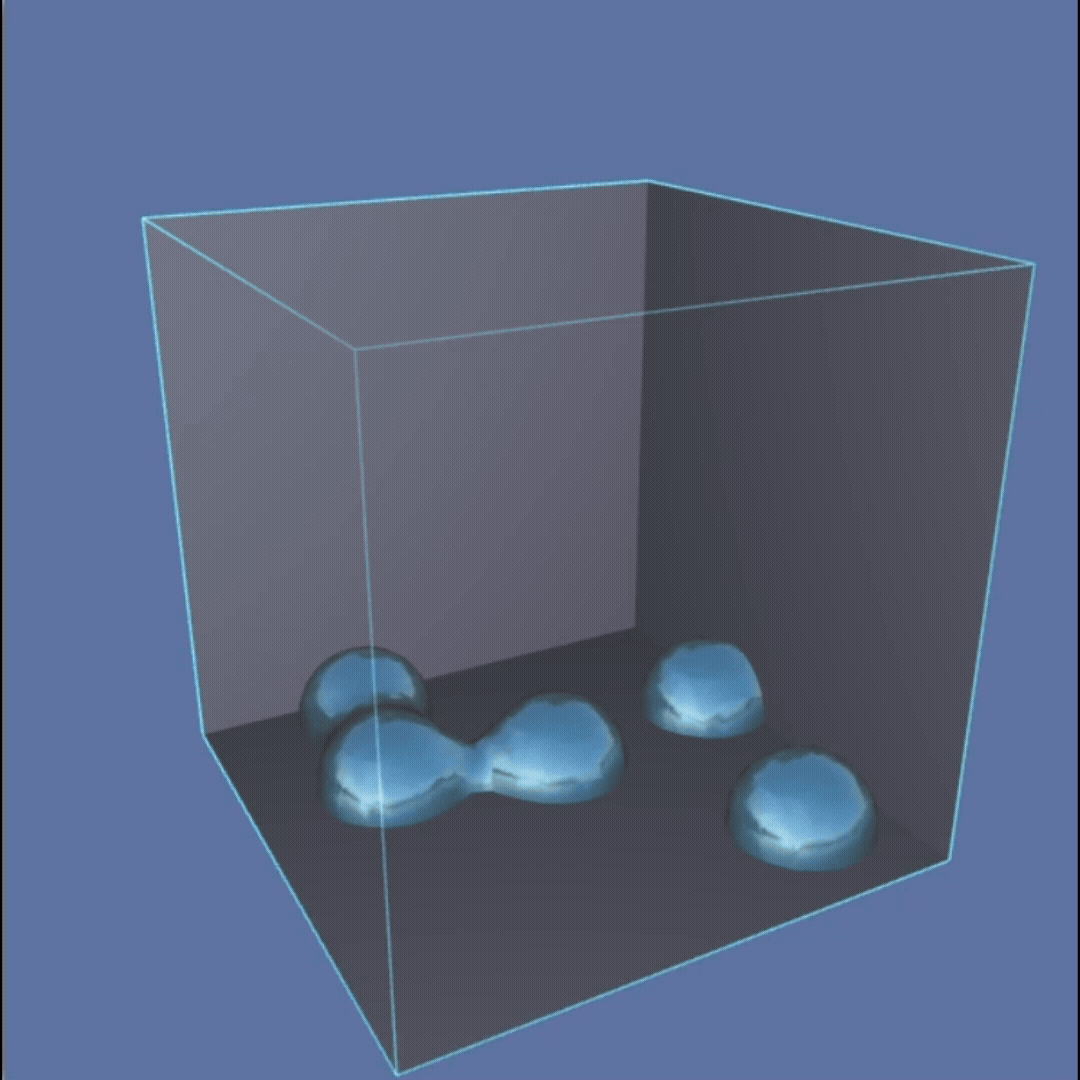

I combined blobby modeling (metaballs) with spring-based physics to generate a fluid surface mesh that melds and deforms in real time.
The Mesh Algorithm

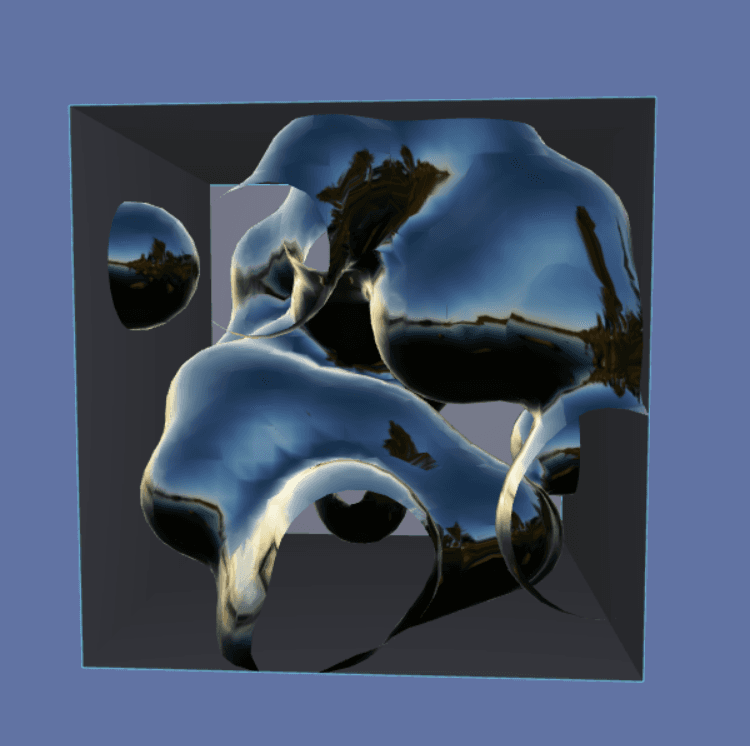

Metaballs with marching cubes
Metaballs, also called blobby objects, are implicit isosurfaces that meld together as they approach one another. I polygonize them into a renderable mesh with marching cubes, then apply all sorts of fun rendering and physics techniques.
The Physics
Spring mechanics

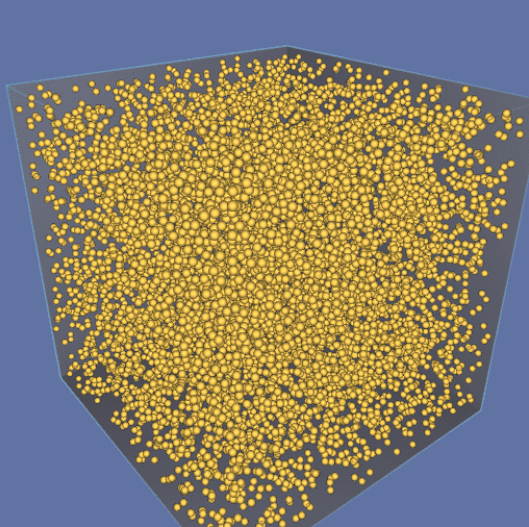

A particle system governed by a network of springs, that push and pull on one another, make a tunable sandbox-style physics playground.
Code
Implementation
I implemented this from scratch in WebGL 1.0, everything from rendering and shading to the physics and interface. Check out my GitHub repository and run it in your browser!
Sandbox
A mathematical playground

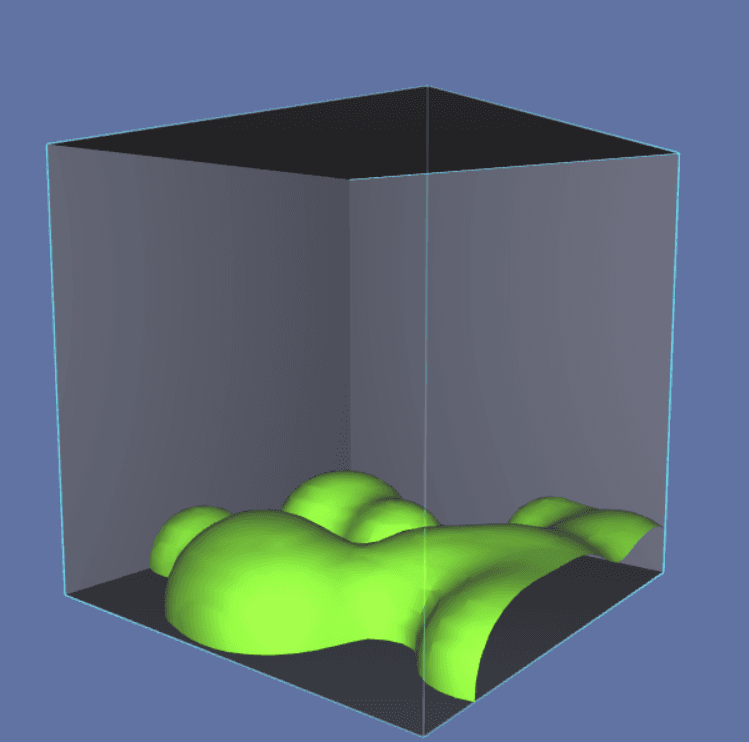

Play with shading techniques and physics variables to create your own liquids, or crash your browser with particles.
